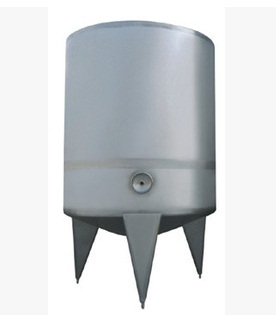

| Product Name: | Single-layer Stainless Tank |
| Hits： | 2716 |
| Addtime: | 2015-05-18 |
Application
Is
mainly suitable for dairy products, juice beverage, brewing and for the liquid
materials’ staging and mixing of the chemical and biological engineering.
Technical specifications
Are all
made of high quality SUS304-2B or SUS316L
Stainless
steel, the shell thickness is 3 - 4 mm;
Structural Features
Single-layer
cylindrical shell, triangle or cylindrical leg;
Stirring
Methods
without
stirring or with belt stirring
Have the forms of paddle,
anchor, pusher, frame and etc.;
Standard Configuration
A)
closed manhole
B) flyproof
insect-resistant breathable cap
C)
PT100 digital display thermometer
D) CIP
cleaning ball
E) the
material inlet
F) rod valve
G)
triangular leg can be adjusted
H) sampling
valve
Effective Volume（V）
Inner Diameter（D）
Height（H）
Thickness（δ）
CFM-500
500
800
2140
3
38/51
CFM-1
1000
1050
2380
3
38/51
CFM-1.5
1500
1180
2550
3
38/51
CFM-2
2000
1340
2760
3
38/51
CFM-2.5
2500
1420
2940
3
38/51
CFM-3
3000
1540
3050
3
38/51
CFM-4
4000
1650
3200
3
38/51
CFM-5
5000
1780
3250
3
38/51
CFM-6
6000
1900
3350
3
38/51
CFM-8
8000
2100
3800
4
65/51
CFM-10
10000
2300
4050
4
65/51
CFM-12
12000
2520
4450
4
65/51
CFM-15
15000
2540
4700
4
65/51
Model
Inlet/Outlet Diamter
